Door Rails & Patch Fitting Options: Glass Door Panic Systems

Find a vast assortment of door rail and patch fitting options at PRL. We’ve got what you need for glass door panic systems. Produced with premium quality aluminum, our collections can’t be outdone. You can buy everything from top and bottom door rails, pivot brackets, lock patch fittings and more for emergency egresses.

Designed specifically for all glass panic systems, we furnish rapid dry set and traditional wet set door rails, dry set sidelite rails, a huge selection of Total Vision System Euro patch fittings, and our Samson hydraulic door patch closers. And you can receive standard rails the very next day! Generated ourselves, we stock giant inventories of these aluminum extrusions at all times.

Our door rails and patch fittings meet multiple fire exit specifications. Fitting a wide range of glass door thicknesses, you can quote this hardware in classic architectural finishes. Crafted in a large scope of standard lengths and heights, you can also order these components in custom sizes per your plans. Manufacturing all door rails and patch fittings in our facility, we can accommodate custom requests.

Rapid Dry Set Door Rails:

Tired of frustrating door rail installations? Shop PRL’s rapid dry set door rails. They make effortless all glass panic system installs. Featuring precision bolt assembly systems, we eliminate messy wet glazing, and equipped with interchangeable drop-on covers, field adjustments are hassle-free. That’s right. Indoors or out, our dry set rails are a must-have for emergency egresses.

Get in on the benefits of our rapid dry set door rails. Sold with and without locks, these components adapt to any type of glass door panic system hardware. Our rails will accept everything from mechanical and electrical access controls, automatic door hardware and standard hydraulic swing door controls. And our innovative drop-on covers allow you to adjust door sizes, replace damaged sections, and change finishes without removing doors or rails.

Our rapid dry set rails satisfy numerous evacuation door projects. Offered in tapered and squared profiles, they fit 3/8” to ¾” glass door thicknesses. We create these aluminum extrusions in 36” lengths and 4 standard heights. Provided in a mixture of popular finishes, all standard length dry set rails can be shipped with next day delivery.

Say Goodbye to Messy Cement with PRL’s Fast & Easy Rapid Dry Set Door Rail Installation!

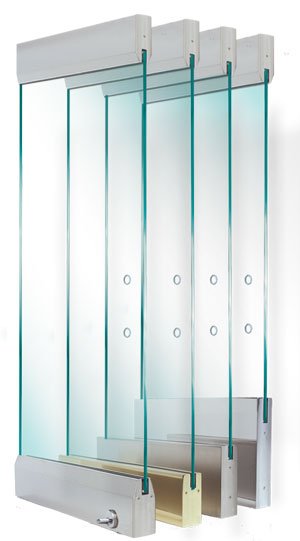

4 Glass Doors with Top and Bottom Rails

All Glass Doors with Top & Bottom Dry Set Rails in Tapered & Square Profiles

Our Rapid Dry Set Door Rails:

PRL’s dry set door rails offer many beneficial features for all glass door panic systems. Available in an assortment of anodized, brass and stainless steel finishes, we provide dry set door rails extruded with superior craftsmanship.

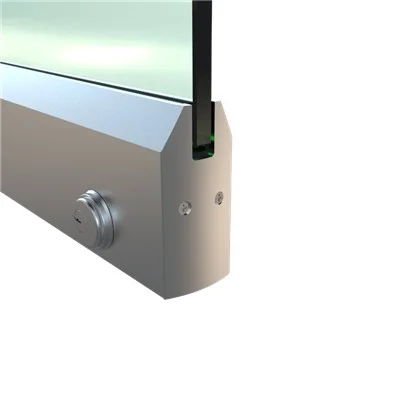

Dry Set Door Rail Tapered Lock Clear Anodize

Tapered Dry Set Door Rail with Lock Clear Anodize Finish

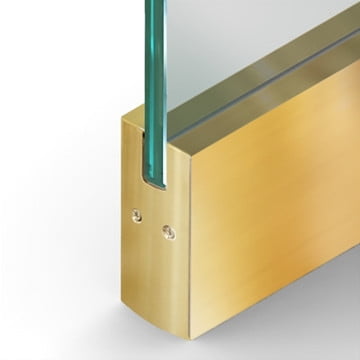

Dry Set Door Rail Square Polished Brass

Square Dry Set Door Rail without Lock Polished Brass Finish

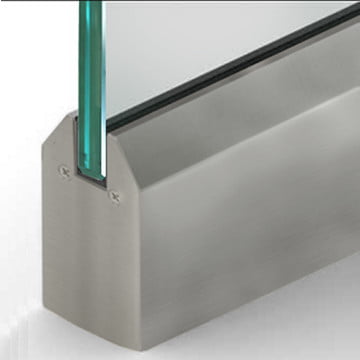

Dry Set Door Rail Tapered Mill

Tapered Dry Set Door Rail without Lock Mill Finish

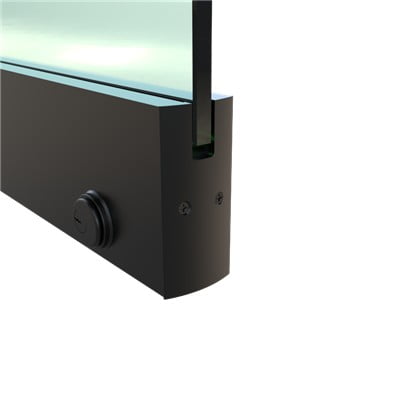

Dry Set Door Rail Square Lock Bronze Anodize

Square Dry Set Door Rail with Lock Bronze Anodize Finish

Rapid Dry Set Door Rail Specs:

  • Profiles: Tapered & square
  • Heights: 2 ¼”, 4 ¼”, 6”, 10 1/8” & custom
  • Lengths: 36” & custom
  • Accepts Glass Thicknesses: 3/8”, ½”, 5/8” & ¾”

Rapid Dry Set Door Rail Finishes:

  • Clear & bronze anodized
  • Brushed & polished stainless steel
  • Satin & polished brass
  • Mill & custom upon request

Interchangeable Drop-On Cover Features:

  • No door or rail removal required!
  • Adjust door sizes & change finishes in a snap!
  • Just drop on our interchangeable covers

Drop-On Cover Finishes:

  • Cladded & anodized
  • Kynar paints
  • Custom powder coats

Wet Set Door Rails:

You can be sure of our wet set door rails. Manufactured in-house with the finest aluminum, these one-piece rails bring strength and durability to all glass panic systems. Available in a medley of stylish finishes, you can purchase these components in 4 different heights in standard or custom lengths. So, bid our our wet set door rails today! As one of the few glazing suppliers that still render this traditional time-tested system, it’s no wonder architects choose us first.

Our wet set rails yield a perfect one-piece bond for glass door fire exits. Mounted to glass panels using high-strength compression cement, this wet glazing method grants a secure application for panic doors. These aluminum extrusions take 3/8” to ¾” glass thicknesses. Carried in tapered and squared profiles, you can get our wet set door rails with mechanically fastened or traditionally welded endcaps.

Our Wet Set Door Rails:

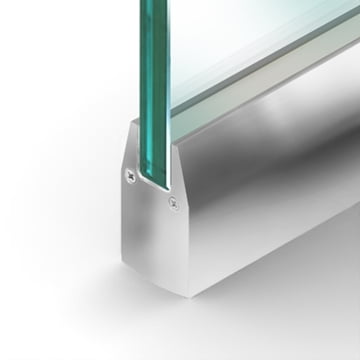

Wet Set Door Rail Tapered Polished Stainless Steel

Tapered Wet Set Door Rail Polished Stainless Steel Finish

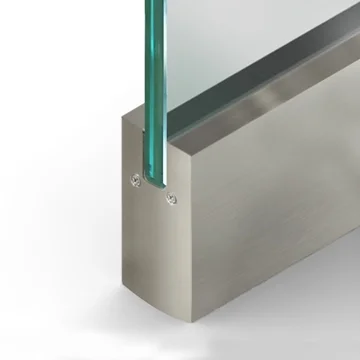

Wet Set Door Rail Square Brushed Stainless Steel

Square Wet Set Door Rail Brushed Stainless Steel Finish

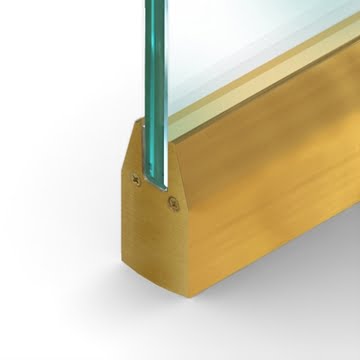

Wet Set Door Rail Tapered Satin Brass

Tapered Wet Set Door Rail Satin Brass Finish

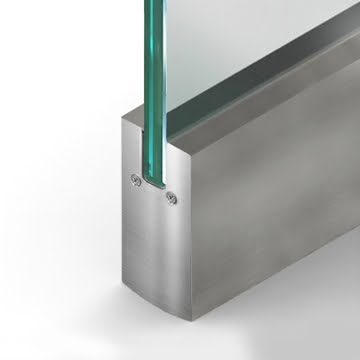

Wet Set Door Rail Square Clear Anodize

Square Wet Set Door Rail Clear Anodized Finish

Wet Set Door Rail Specs:

  • Profiles: Tapered & square
  • Heights: 2 ¼”, 4 ¼”, 6”, 10 1/8” & custom
  • Lengths: 36” & custom
  • Accepts Glass Thicknesses: 3/8”, ½”, 5/8” & ¾”

Wet Set Door Rail Finishes:

  • Clear & bronze anodized
  • Brushed & polished stainless steel
  • Satin & polished brass
  • Mill & custom upon request

Rapid Dry Set Sidelite Rails:

Buy rapid dry set sidelite rails at PRL. These framing materials enable precise fits for glass door panic systems. How? With our setting tracks. These components secure our sidelites to structures, so they align properly with adjacent door rails. Made in tapered and squared profiles, you can specify our dry set sidelite rails in 120” or custom lengths. And you can get these aluminum extrusions right away! Stockpiling massive quantities in our facility, we can ship them within 24 hrs.

Our rapid dry set sidelite rails are the clear choice for all glass evacuation doors. Boasting fast and simple installation, they do away with grimy cement by using EPDM compression vinyl and a dry glaze method. Our sidelite rails accept 3/8” to ¾” glass door thicknesses and can be ordered in a variety of heights. Produced in matching finishes, these aluminum sections coordinate seamlessly with our dry and wet set door rail series.

Our Rapid Dry Set Sidelite Rails

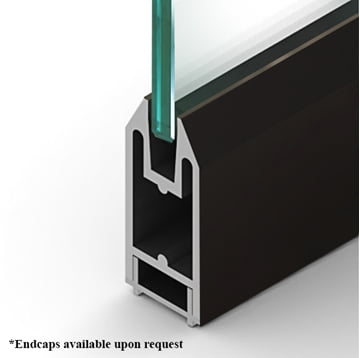

Rapid Dry Set Sidelite Rail Tapered Bronze Anodize

Tapered Rapid Dry Set Sidelite Rail Bronze Anodized Finish

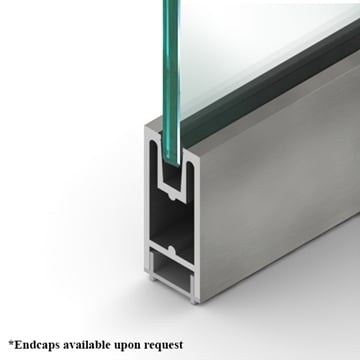

Rapid Dry Set Sidelite Rail Square Mill

Square Rapid Dry Set Sidelite Rail Mill Finish

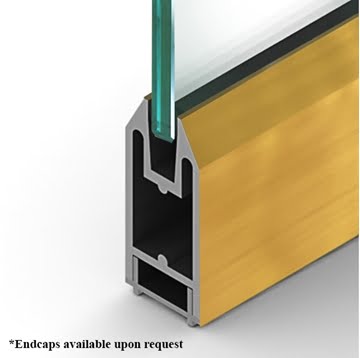

Rapid Dry Set Sidelite Rail Tapered Satin Brass

Tapered Rapid Dry Set Sidelite Rail Satin Brass Finish

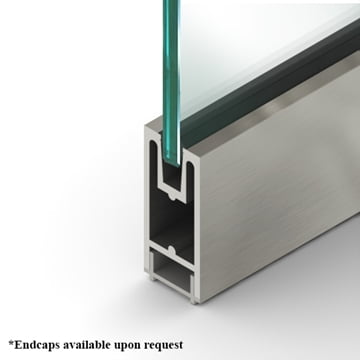

Rapid Dry Set Sidelite Rail Square Clear Anodize

Square Rapid Dry Set Sidelite Rail Clear Anodized Finish

Rapid Dry Set Sidelite Rail Specs:

  • Profiles: Tapered & squared
  • Heights: 2 3/8” to 10”
  • Lengths: 120” & custom per your plans
  • Accepts Glass Thicknesses: 3/8” to ¾”

Rapid Dry Set Sidelite Rai Finishes:

  • Clear & bronze anodized
  • #4 brushed & #8 polished stainless steel
  • Satin & polished brass
  • Mill & custom upon request

Total Vison System (TVS) Euro Door Patch Fittings

Innovate your emergency egress! Quote our Total Vision System (TVS) Euro door patch fittings. Designed for heavy all glass passage doors, these petite metal supports deliver entirely transparent panic systems with their slim profiles. No more restrictive views with us! Just beautiful clarity for interior or exterior commercial accessways. Furnished in scopes of finishes in standard and custom sizes, our Euro patch fittings will meet your glass door panic system needs.

Our TVS patch fittings are a pioneering method to secure and pivot heavy all glass doors. Ideal for fire exits, glass panels serve as the structural element and our Euro hardware pivots doors in addition to holding adjacent glass panels in place. Generated with aluminum and stainless steel fasteners, these patch fittings support panic doors with confidence and strength. When used properly, our Euro fittings accommodate most standard opening conditions. For this reason, design consideration must be assessed when selecting Total Vision System components.

We fabricate a complete line of Euro door patch fittings in our facility. Standard or custom, you can bid the TVS supports your all glass panic system requires. Sold in assorted heights and lengths, you can get everything from door stops and pivot brackets to glass and lock patch fittings. This Euro hardware fits ½” to ¾” glass door thicknesses. We also supply related Total Vision System fittings for thicker adjacent glass panels. Examples include fixed sidelites, stabilizer fins and glass transoms. And we can even craft custom Euro door patch fittings for oversized life-safety egresses or special panic system configurations.

One of Many PRL's Door Rails and Patch Fitting Options

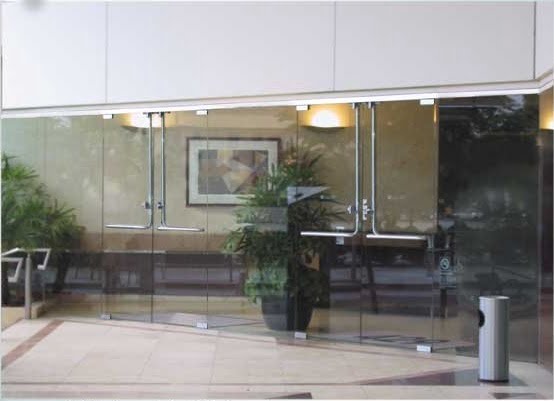

All Glass Panic Doors with TVS Euro Patch Fittings

Our Total Vison System Euro Door Patch Fittings

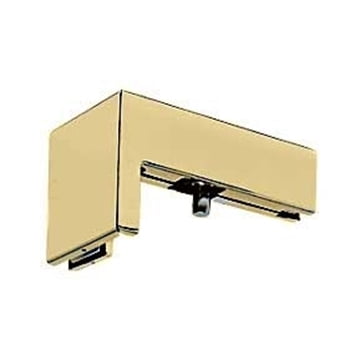

TVS 90 Degree Sidelite Transom Pivot Bracket Satin Brass

90˚ Sidelite/Transom Euro Patch Fitting Pivot Bracket Satin Brass Finish

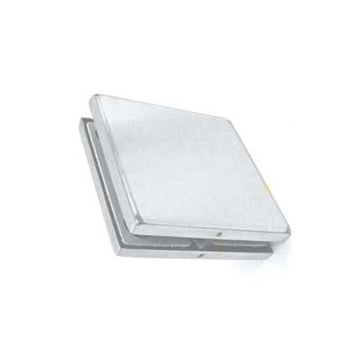

TVS 180 Degree Sidelite Sidelite Bracket Clear Anodize

180˚ Sidelite/Sidelite Euro Patch Fitting TVS Bracket Clear Anodized Finish

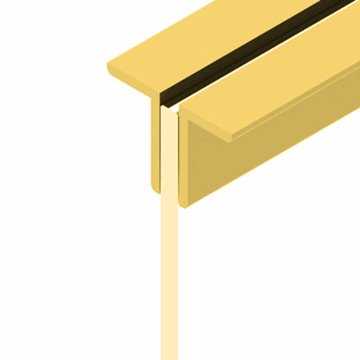

TVS L Angle Fin Head Bracket Polished Brass

L-Angle Fin Euro Patch Fitting Head Bracket Polished Brass Finish

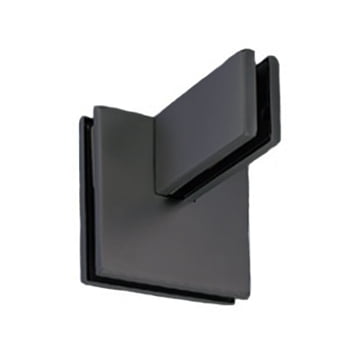

TVS Sidelite Sidelite Bracket With Fin Bronze Anodize

Sidelite/Sidelite TVS Patch Fitting Bracket with Fin Bronze Anodized Finish

Total Vison System Fitting Specs:

  • Profiles: Petite, slender
  • Heights: Vary per fitting
  • Lengths: Vary per fitting
  • Accepts Glass Thicknesses: ½”, 5/8” & ¾”

Euro Door Patch Fitting Finishes:

  • Clear & bronze anodized
  • #4 brushed & #8 polished stainless steel
  • Satin & polished brass
  • Custom Kynar paints

Door Rail Patch Fittings:

Explore door rail patch fittings at PRL of Los Angeles County. These framing materials are your solution for all glass evacuation exits. Rendered with top quality aluminum cladded in premium stainless steel, our door rails will stand the test of time. And offered in tapered and squared profiles, these patch fittings bring fashionable options to glass door panic systems.

Make your door rail patch fittings count by shopping with us. We create a spectrum of these components with your emergency egress projects in mind. Accepting 3/8” to ¾” glass door thicknesses, you can purchase our patch fittings in standard or custom finishes. We manufacture these door rails in 9 ½” lengths. Carried in cladded and uncladded widths, these aluminum extrusions fit several all glass panic systems.

Our Door Rail Patch Fittings:

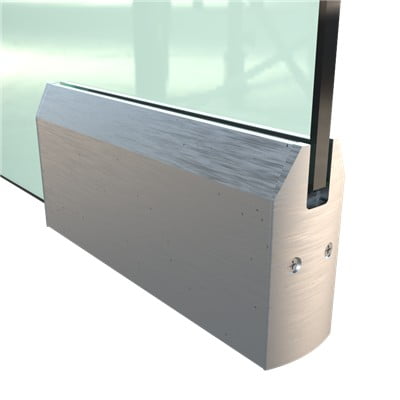

Door Rail Patch Fitting Tapered Mill

Tapered Door Rail Patch Fitting Mill Finish

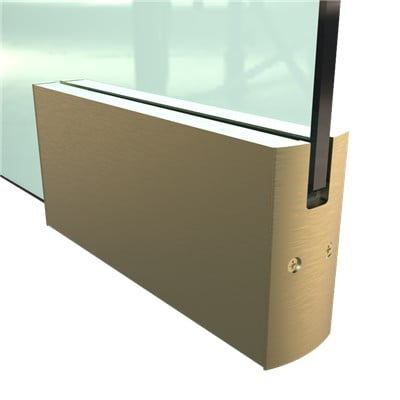

Door Rail Patch Fitting Square Satin Brass

Square Door Rail Patch Fitting Satin Brass Finish

Door Rail Patch Fitting Tapered Brushed Stainless Steel

Tapered Door Rail Patch Fitting Brushed Stainless Steel

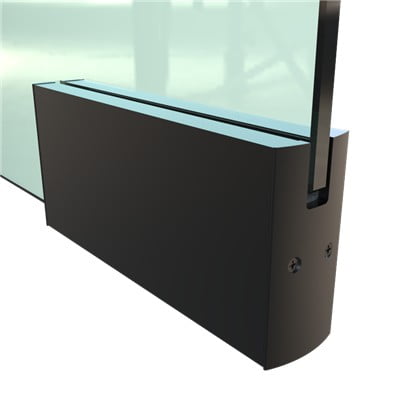

Door Rail Patch Fitting Square Bronze Anodize

Square Door Rail Patch Fitting Bronze Anodized

Door Rail Patch Fitting Specs:

  • Profiles: Tapered & squared
  • Cladded Widths: 1 7/8” to 2 5/16”
  • Uncladded Widths: 1 ¾” to 2 3/16”
  • Lengths: 9 ½”
  • Accepts Glass Thicknesses: 3/8” to ¾”

Door Rail Patch Fitting Finishes:

  • Clear & bronze anodized
  • #4 brushed & #8 polished stainless steel
  • Satin & polished brass
  • Mill finish
  • Custom powder coats & Kynar paints

Samson Door Patch Fitting Closers:

Get quick and easy installation with our Samson door patch fitting closers. An all-in-one hydraulic patch fitting and a closer, this piece of hardware eliminates the need for digging to install all glass panic doors. ADA compliant, and loaded with lots of great features, our heavy-duty patch fittings satisfy numerous specifications. So, order the Samson door patch closer for your next fire exit. Extending 2 different fittings, you can buy these components for a range of glass door thicknesses.

How do Samson door patch fitting closers make installation simple? With their cutting-edge design. Perfect for shallow floor job sites, the Samson’s hydraulic closer is built into the bottom fitting so it can be mounted without a concrete recess. The result? No more tedious, time consuming digging to install all glass panic doors! Just fasten our patch fitting’s base plate to the floor, install the top pivot and you’re done. A terrific alternative to overhead and traditional floor spring closers, the Samson grants ease of use for glass door life-safety egresses.

Our Samson door patch fitting closers have a lot to offer all glass panic systems. Available in hold and no-hold options, this heavy-duty hardware is non-handed, features a 5 lb. opening force, and adjustable opening and closing speeds. Accepting 3/8” to 9/16” glass door thicknesses, you can buy our patch fitting closers in 2 stainless steel finishes. Slightly larger in size than our Euro patch fittings, the Samson still fosters unhindered glass door views with its compact shape. Suitable for use on single and double action doors, this hydraulic patch fitting also works where conventional closers won’t.

Our Samson Door Patch Fitting Closers:

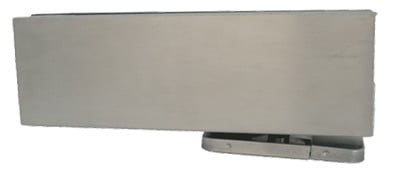

Hold Door Patch Fitting Closer Brushed Stainless Steel

Samson Hold Open Door Patch Fitting Closer Brushed Stainless Steel

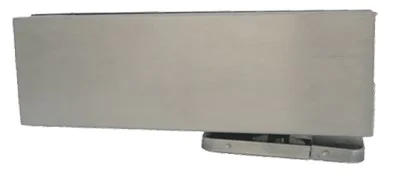

Non Hold Door Patch Fitting Closer Brushed Stainless Steel

Samson Non-Hold Open Door Patch Fitting Closer Brushed Stainless Steel

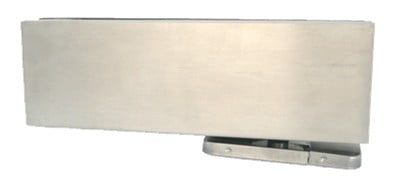

Hold Door Patch Fitting Closer Polished Stainless Steel

Samson Hold Open Door Patch Fitting Closer Polished Stainless Steel

Non Hold Door Patch Fitting Closer Polished Stainless Steel

Samson Non-Hold Open Door Patch Fitting Closer Polished Stainless

Samson Door Patch Fitting Specs:

  • Patch Dimensions: 9 3/16” L x 3 1/16” H
  • Opening Range: 90° & 105° hold open or non-hold open
  • Maximum Door Weight: 220 lbs.
  • Accepts Glass Thicknesses: 3/8” to 9/16”

Samson Door Patch Closer Finishes:

  • #4 brushed stainless steel
  • #8 polished stainless steel

Explore all your door rail and patch fitting options at PRL!
