Here you will find Videos on "How to Quote and Order" PRL Products Online as well as many other New videos surrounding our all glass door manufacturing capabilities and our many panic device designs. ...View and Subscribe on Youtube TODAY!
Need Some New Ideas for Your Glass Door Panic System?
Find inspiration and ideas by browsing PRL’s panic device catalog! Whether you’re looking for panic devices, door options, glass types, hardware or exterior handles, they’re all in there. PRL- we provide solutions. ...Download PRL's Panic Device Catalog.
PRL’s 24/7 Online Quick Quotes and Orders program is intended to make quoting and purchasing quick and convenient. Purchase all your panic door device hardware with PRL Today! ...Register Now.

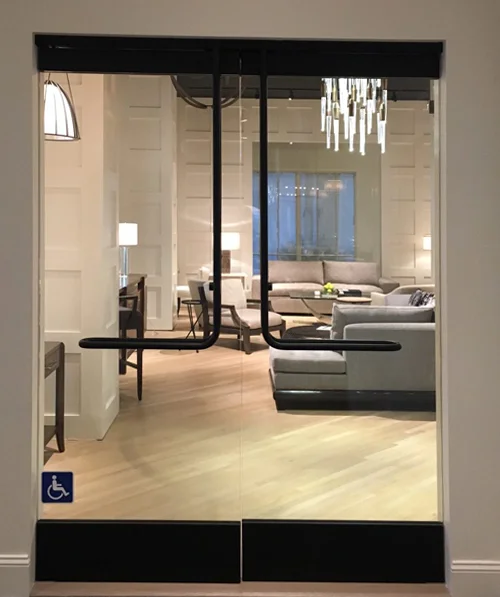

PL 100 Top Latching Panic Device
- Latches into door header
- Meets A.D.A. regulations
- Stainless steel construction
- Slender, 1 ¼” L-shaped design
- Dogging feature for secure 24/7 access
- Tested in accordance to ANSI standards
- Adaptable to small format IC core cylinders
- PRL panic bar protective covering

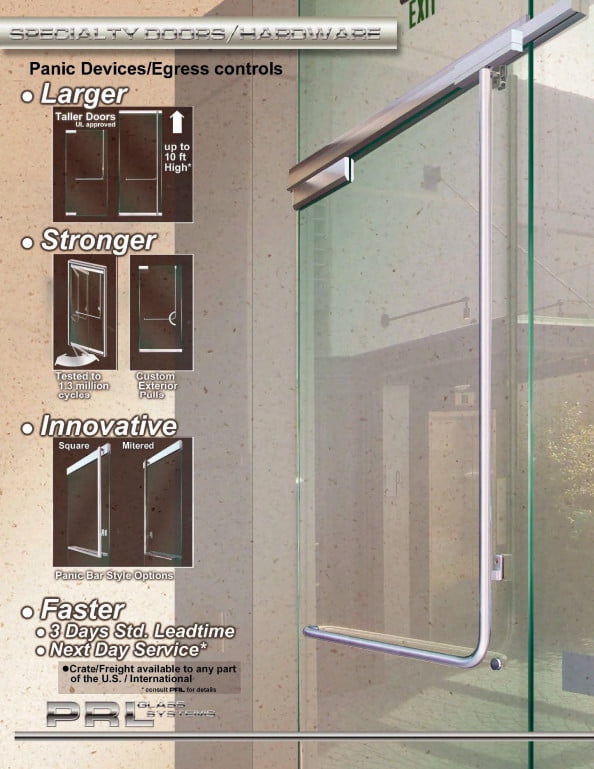

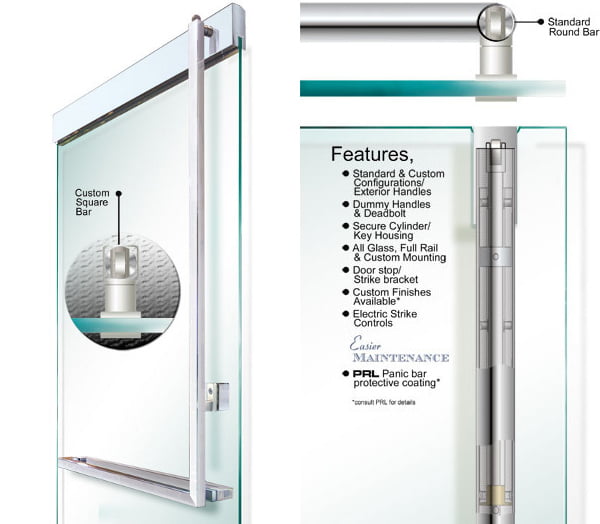

3 Panic Device Styles:
- Standard Round:
A round style with smooth, rounded corners. - Standard Mitered Round:
A round style with sleek 90˚ mitered corners. - Custom Square:
An innovative, square panic device with 90˚ mitered corners and crisp clean lines and edges. The first ever to design a square panic device, PRL pioneers ahead of the competition bringing you this visionary PRL exclusive.
Panic Door Options:
- 5 All Glass Door Styles:
P style
BP style
F style
A style
WS450 I-Line style

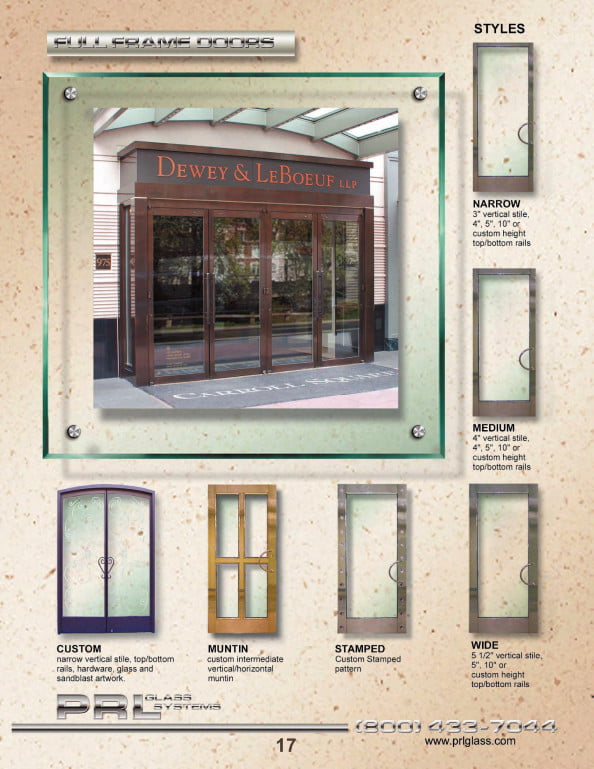

Glass Thicknesses: ½”, 5/8” & ¾” - 3 Full Framed Clad Door Stiles:
3” narrow stile
4” medium stile
5 ½” wide stile
Glass Thicknesses: ¼” – 1 ¼”

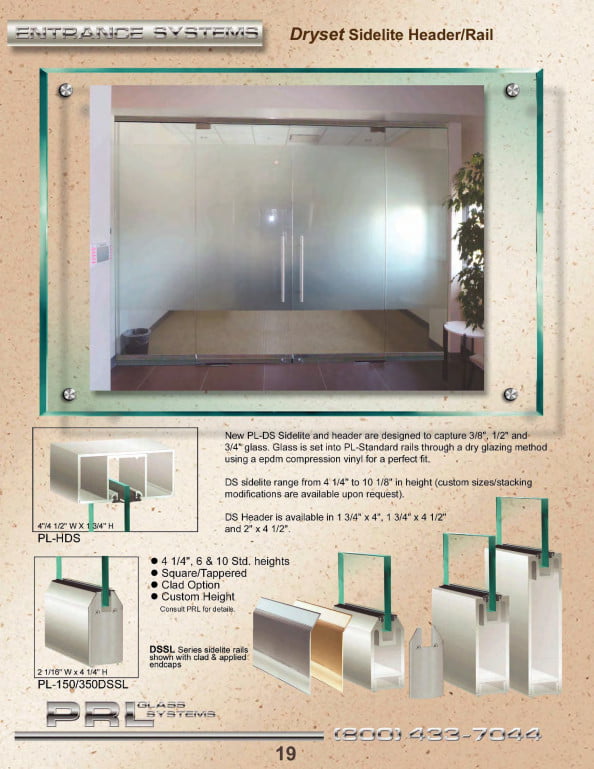

Door Rails & TVS Patch Fittings:

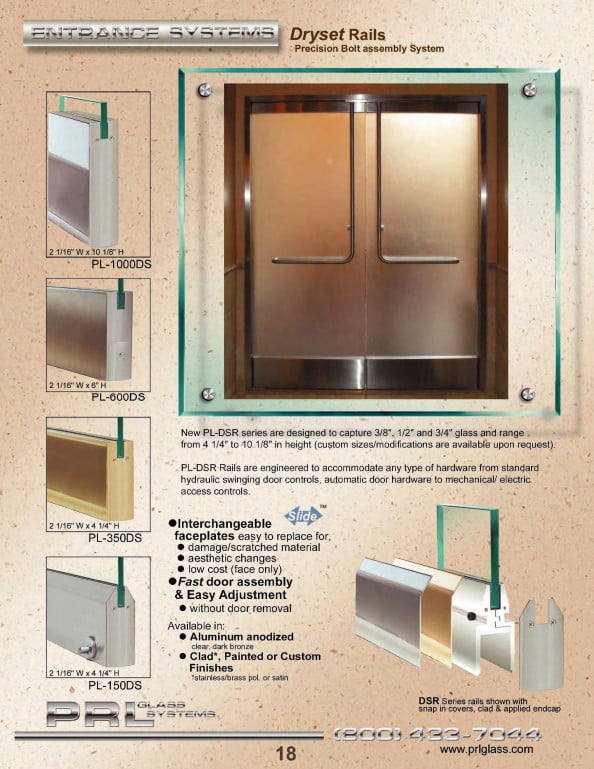

- Door Rails:
Dry set door rails
Wet set door rails

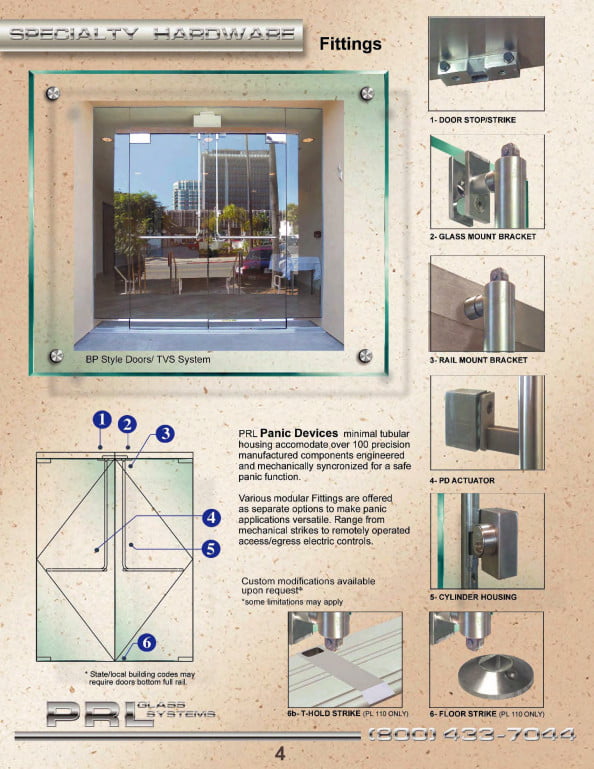

Rapid dry set sidelite door rails - Total Vision System (TVS) Patch Fittings:
Sidelite/transom pivot brackets
Sidelite/transon fin brackets
Transom door stops
Wall/transom pivot brackets
L-Angle fin head brackets
90˚ glass-to-glass connector patch fittings
And more!
PL 110 Floor Latching Panic Device
- Latches into floor
- Ramp or dome strike options
- Stainless steel construction
- Slender, 1 ¼” L-shaped design
- Dogging feature for secure 24/7 access
- Tested in accordance to ANSI standards
- Adaptable to small format IC core cylinders
- PRL panic bar protective covering
Glass Door Panic System Finishes:
- Polished stainless steel
- Satin stainless steel
- Polished brass
- Satin brass
- Oil rubbed bronze
- Powder coat
- Kynar paint
- Custom glass door panic system finishes

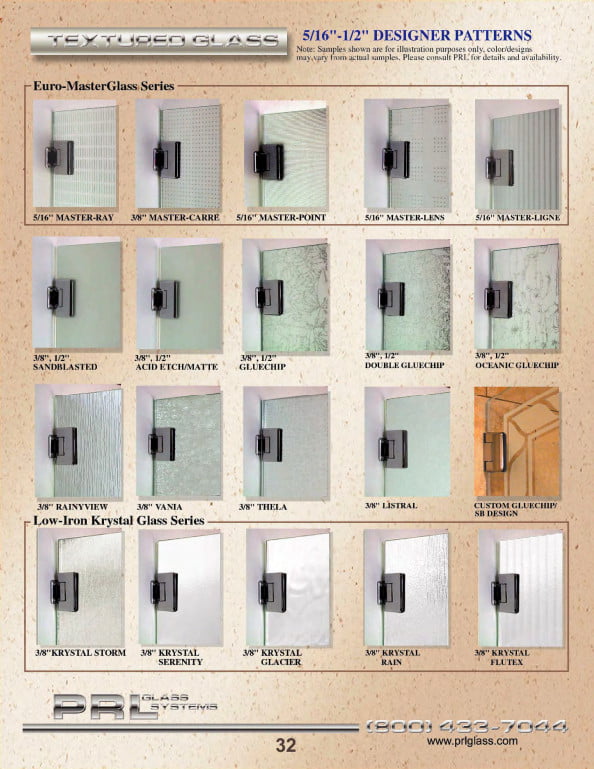

Glass Type Options:
- Tempered
- Laminated
- Insulated
- Low E
- Tinted
- Reflective
- Textured
- Patterned
- Spandrel
- Sanblasted
- GlueChip
- Custom

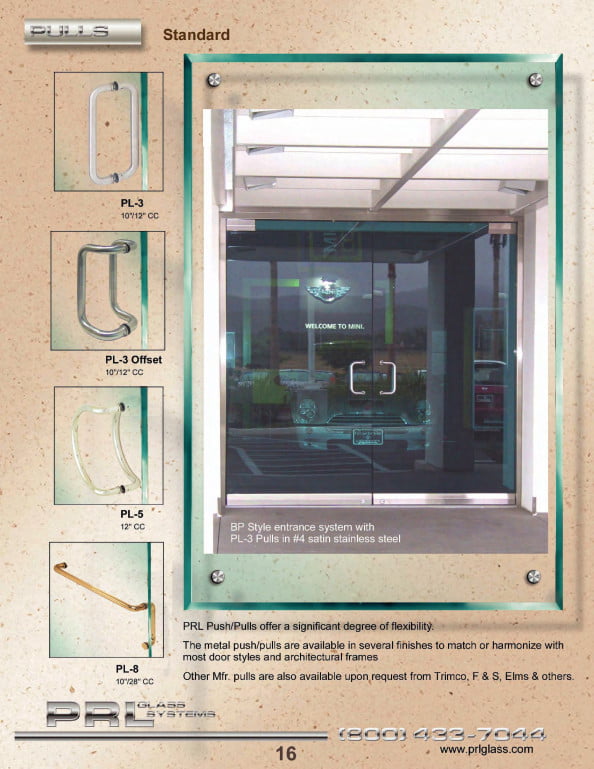

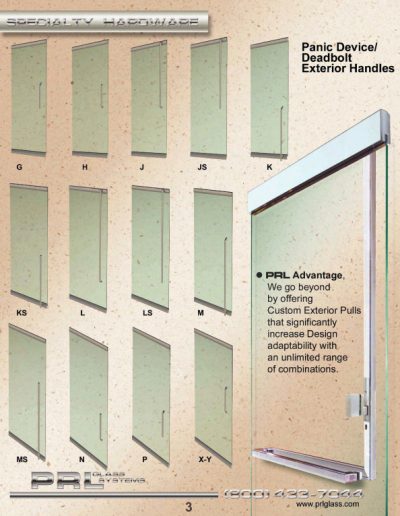

Optional Exterior Handles:
- Exterior Panic Handle Series:
Designed to match our interior panic devices
Available in all industry standard styles from A to Y - Exterior Deadbolt Handles:
Complements panic systems beautifully
Available with keyed cylinders or thumb turns
Optional top latch bolts for electric strikes - Custom Exterior Handles:
Bring your visions to life. Customize your exterior handle.
Solid and mixed finishes
Personalized logos and curved, tubular, geometric and S-shapes
PRL’s Glass Door Panic System. Complete-ly Captivating.
Simply Beautiful Panic Door Devices.
Looking for a Panic Device That Meets A.D.A. Regulations?

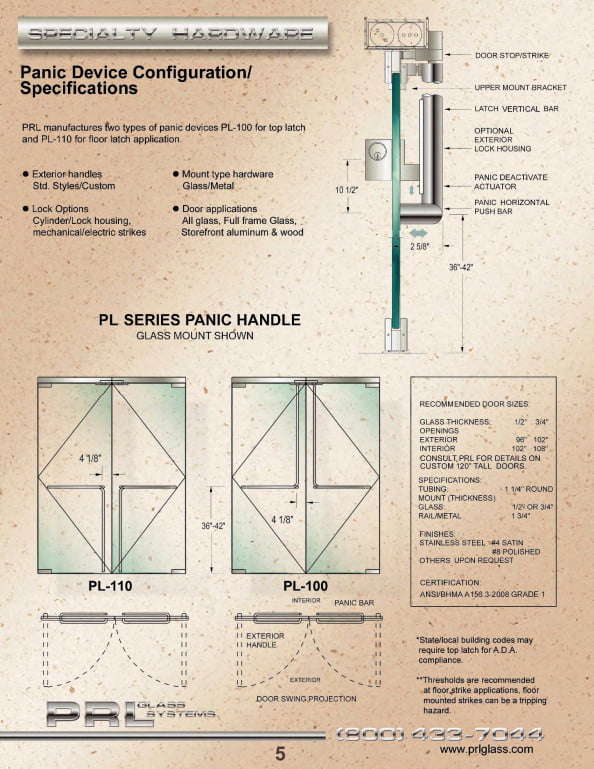

Designed to latch into the door header, the PL-100 panic device is equipped with a top latching mechanism at the top of the door that interfaces with a manual or electric strike. You asked. PRL delivered. This top latching design accommodates wheel chair access and meets A.D.A. regulations.
Panic System Features & Options
When Your Looking for Only the Best
Entrance Doors, Panic Devices and Hardware Catalog
PRL Panic Catalog – Cover
PRL Panic Catalog – Inside Cover

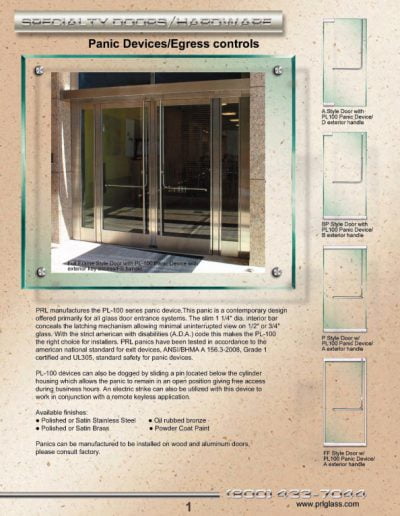

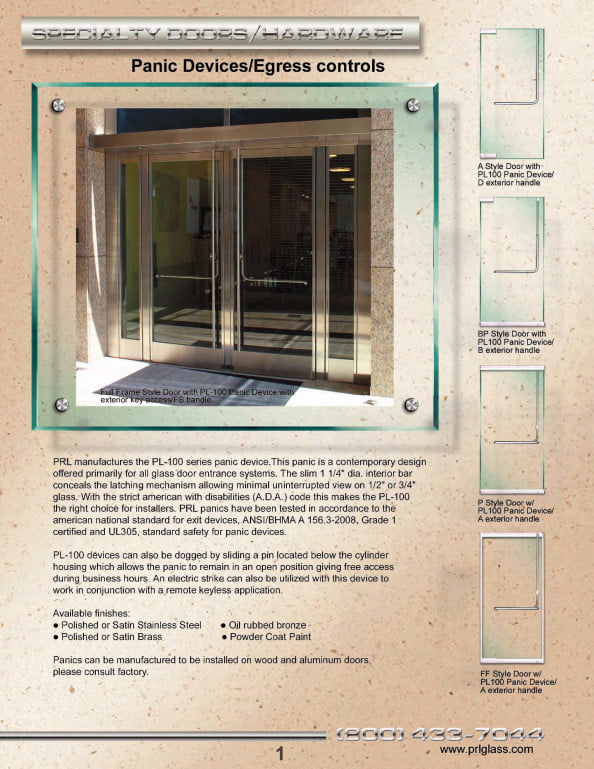

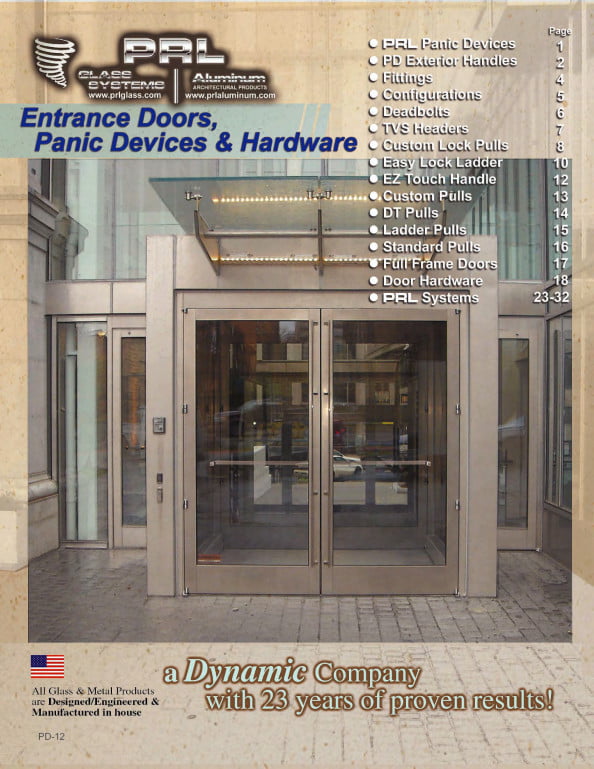

PRL Panic Catalog – Page 1

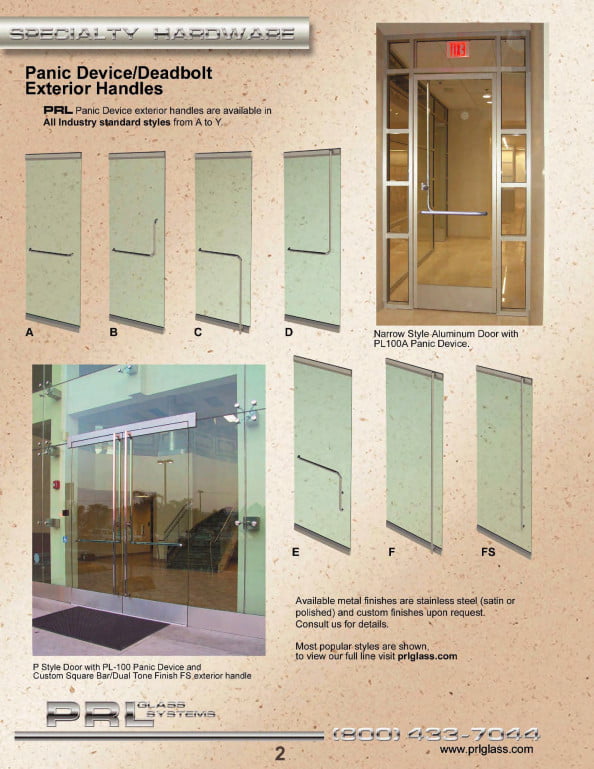

PRL Panic Catalog – Page 2

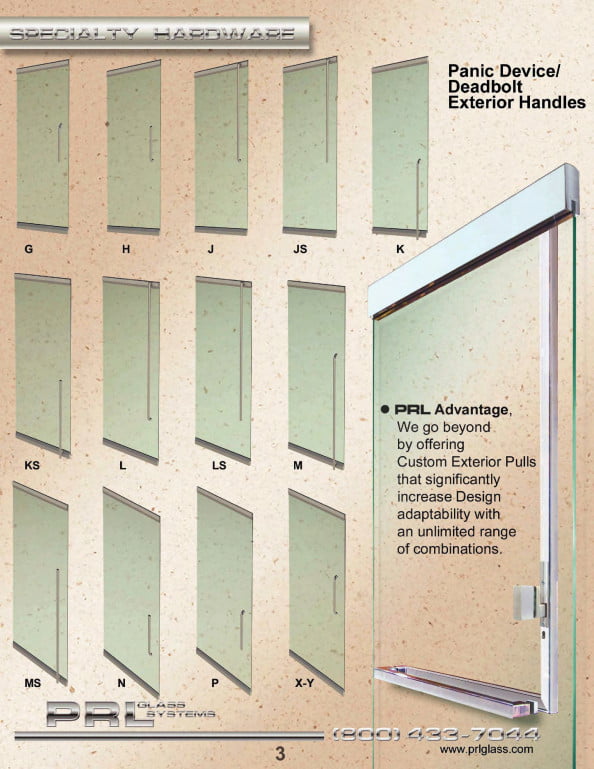

PRL Panic Catalog – Page 3
PRL Panic Catalog – Page 4

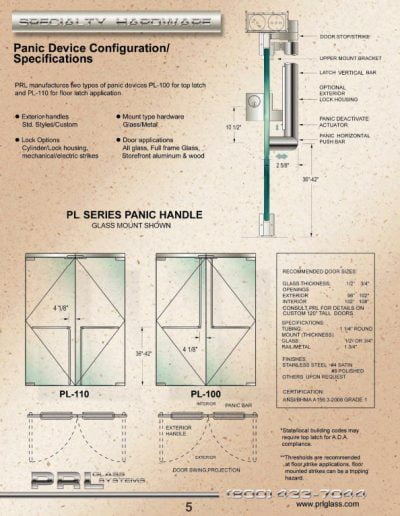

PRL Panic Catalog – Page 5
PRL Panic Catalog – Page 6
PRL Panic Catalog – Page 7

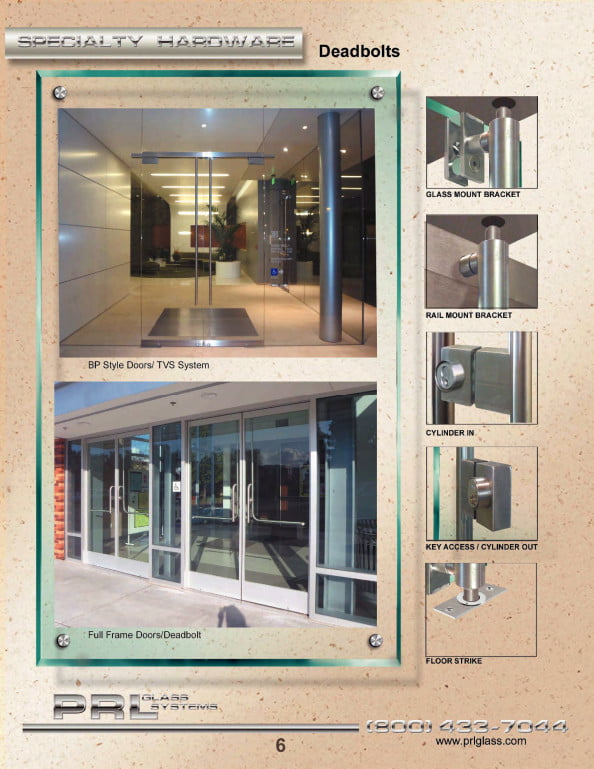

PRL Panic Catalog – Page 8

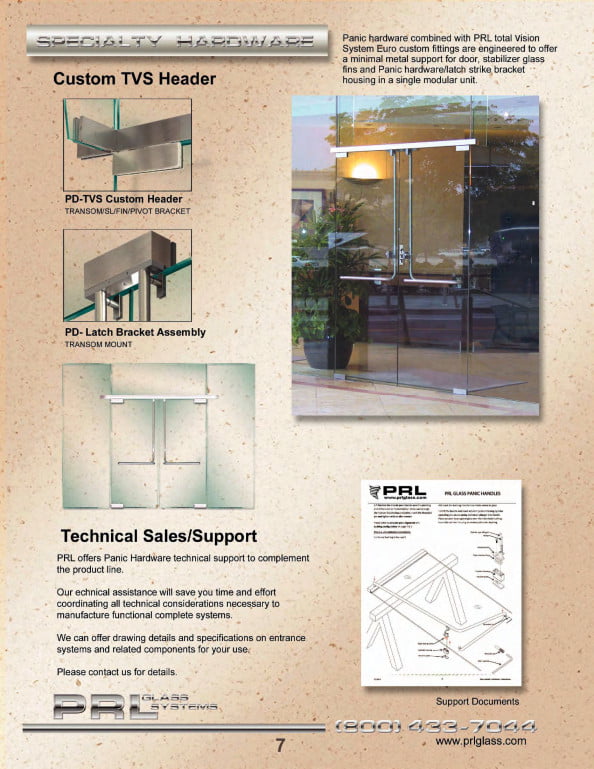

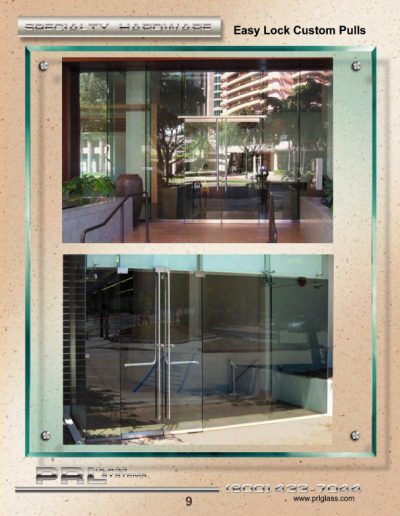

PRL Panic Catalog – Page 9

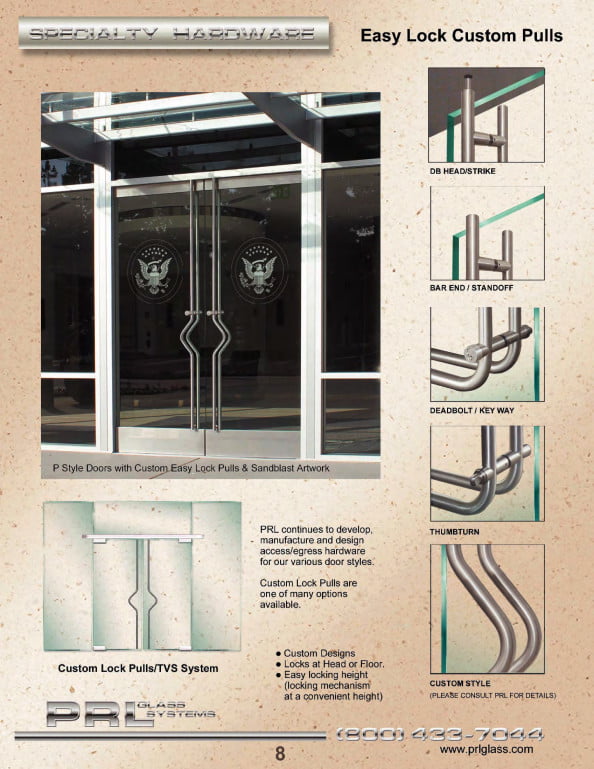

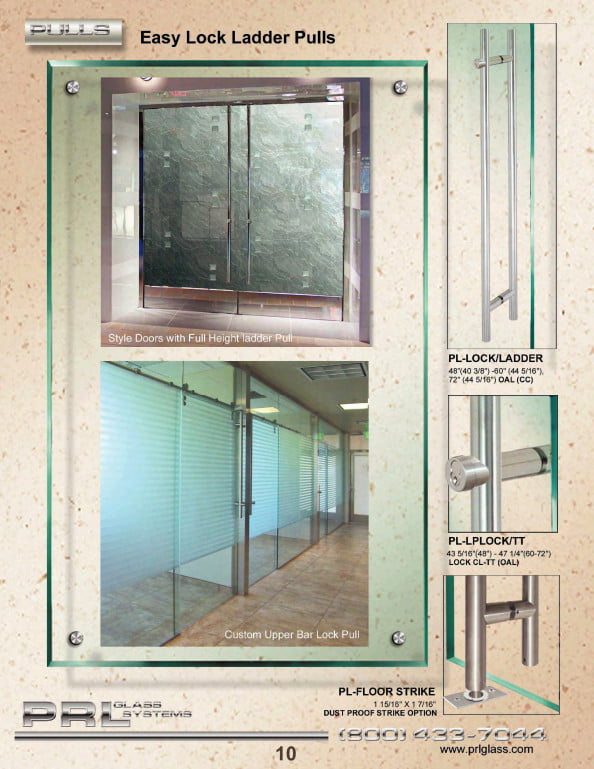

PRL Panic Catalog – Page 10

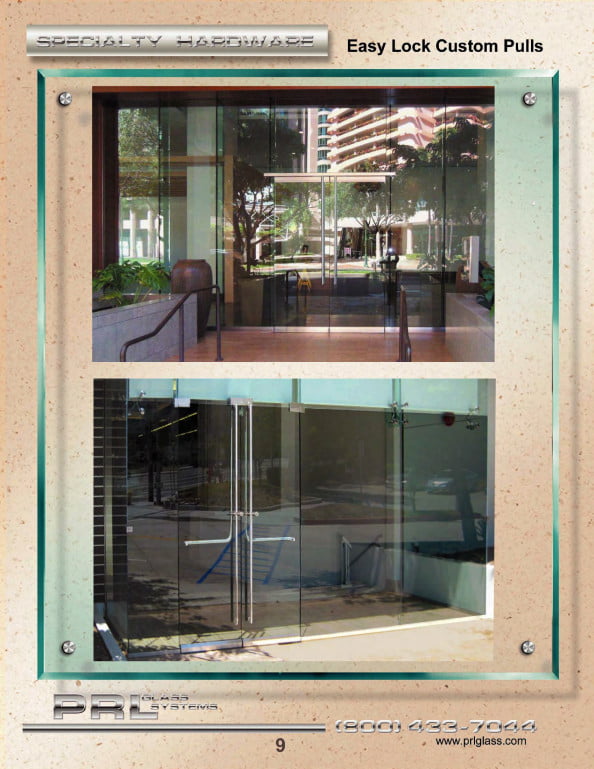

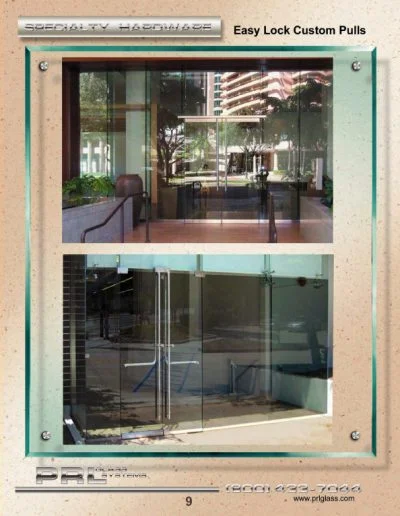

PRL Panic Catalog – Page 11

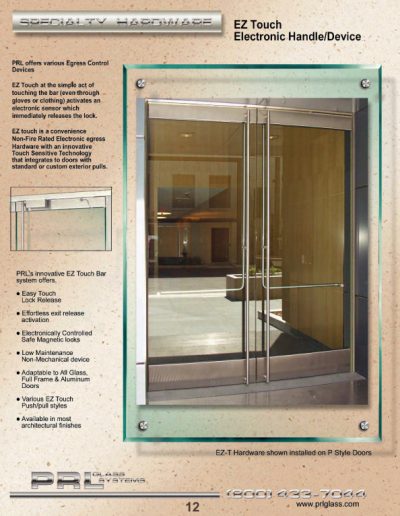

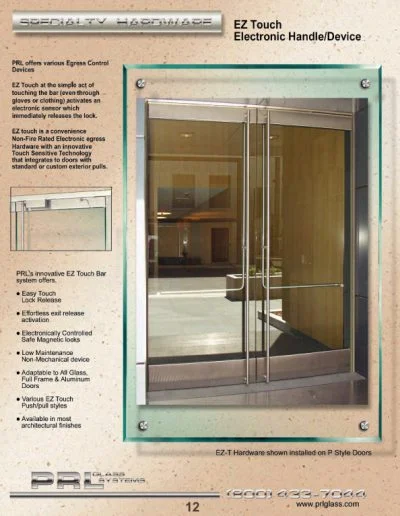

PRL Panic Catalog – Page 12

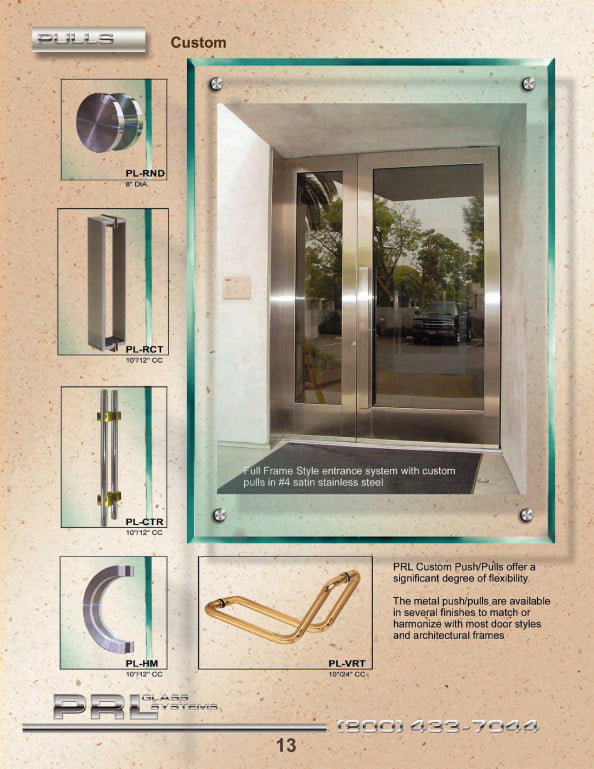

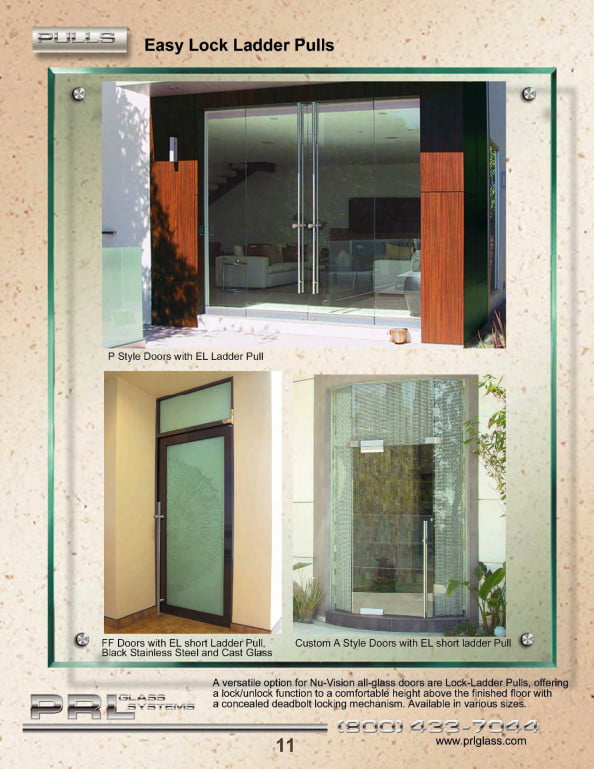

PRL Panic Catalog – Page 13
PRL Panic Catalog – Page 14

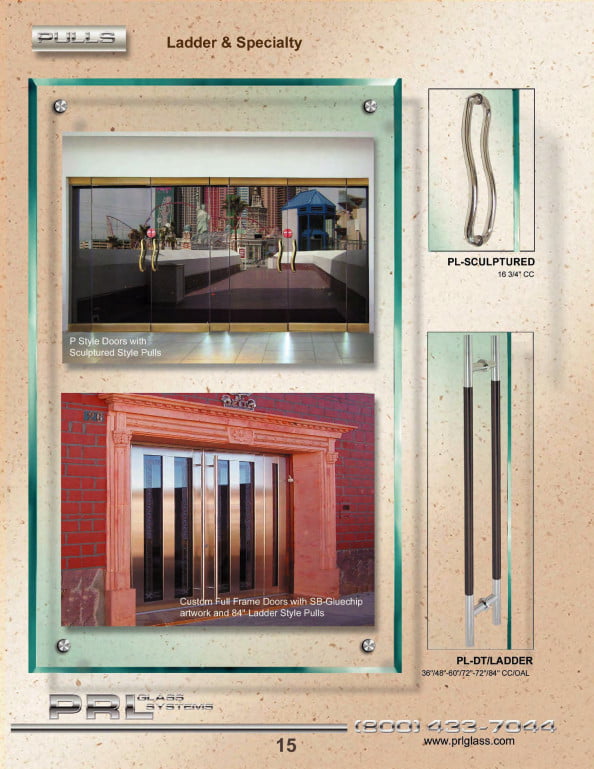

PRL Panic Catalog – Page 15

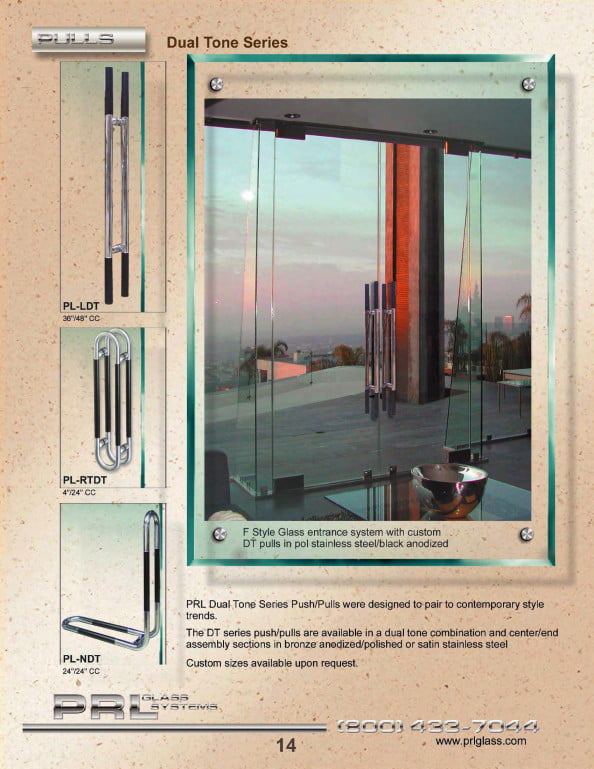

PRL Panic Catalog – Page 16
PRL Panic Catalog – Page 17

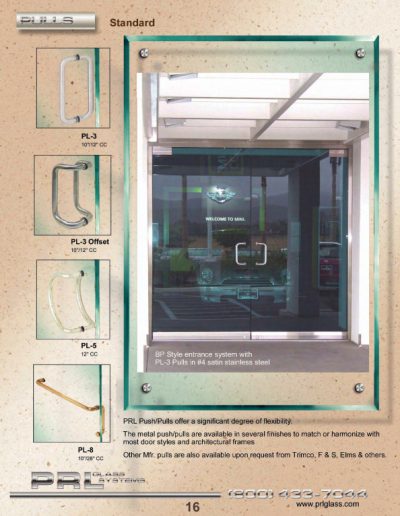

PRL Panic Catalog – Page 18
PRL Panic Catalog – Page 19
PRL Panic Catalog – Page 20
PRL Panic Catalog – Page 21

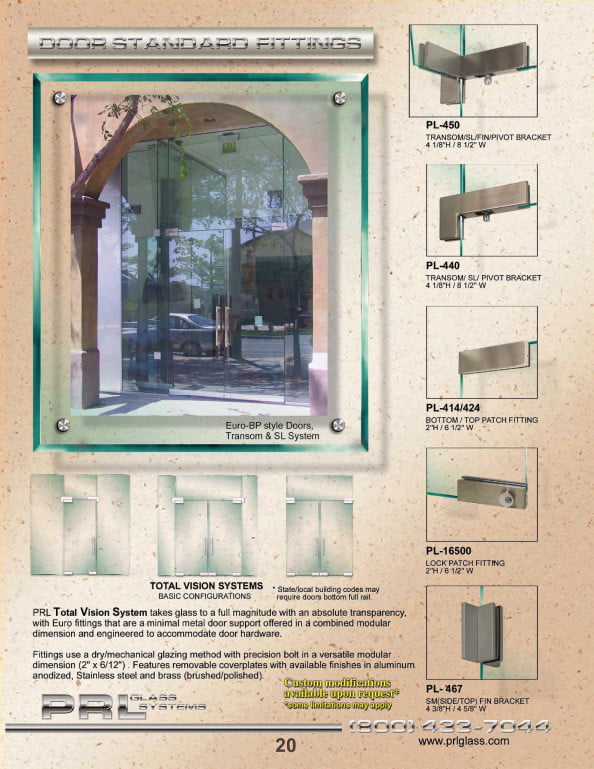

PRL Panic Catalog – Page 22

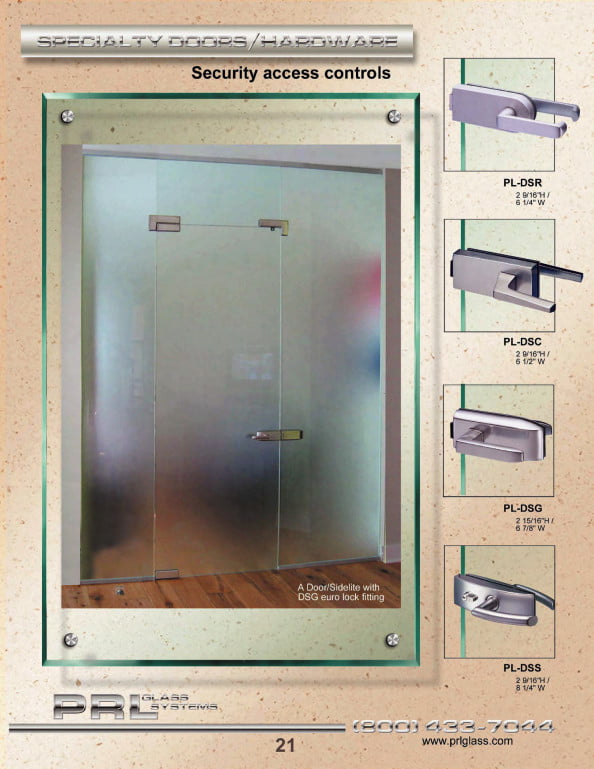

PRL Panic Catalog – Page 23

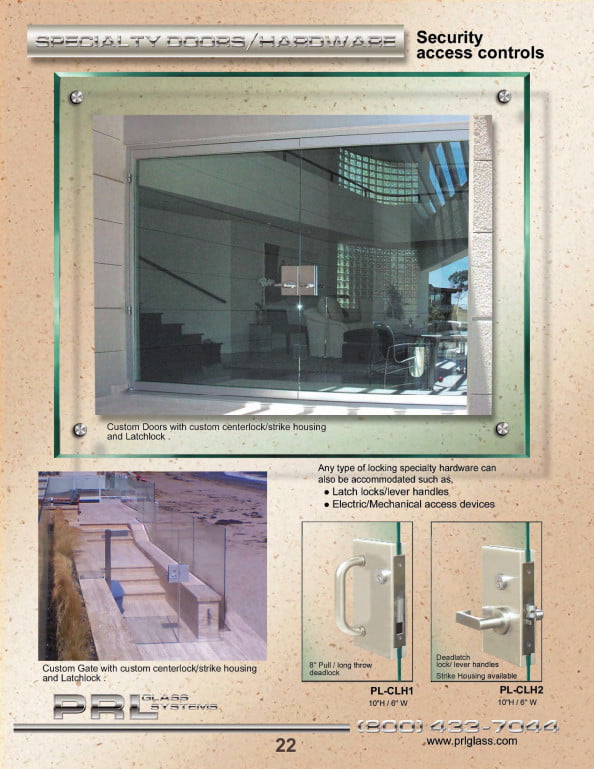

PRL Panic Catalog – Page 24

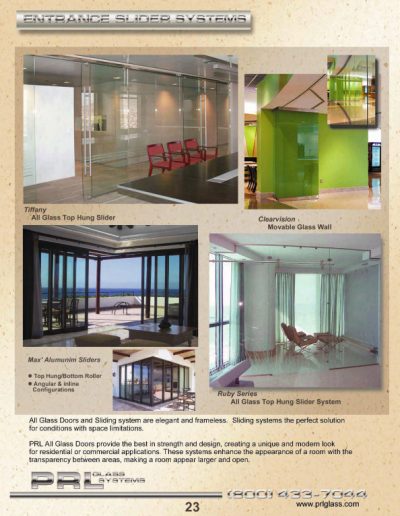

PRL Panic Catalog – Page 25
PRL Panic Catalog – Page 26

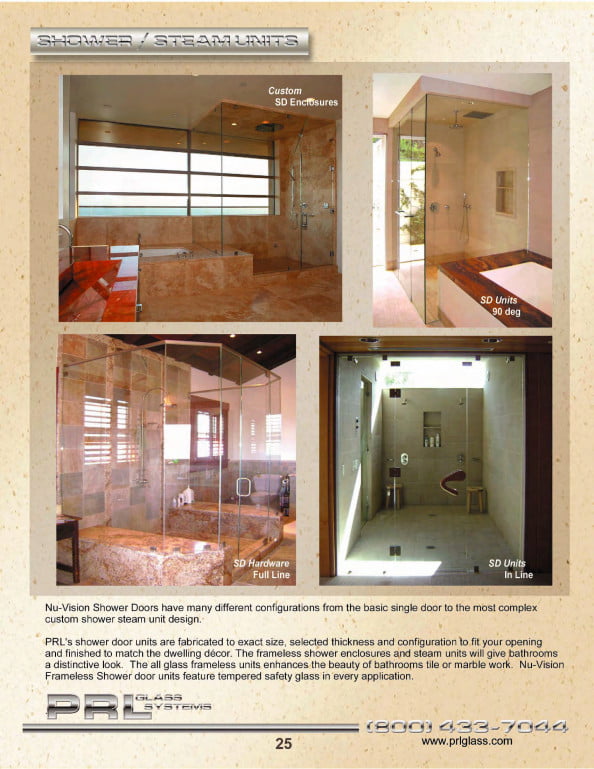

PRL Panic Catalog – Page 27

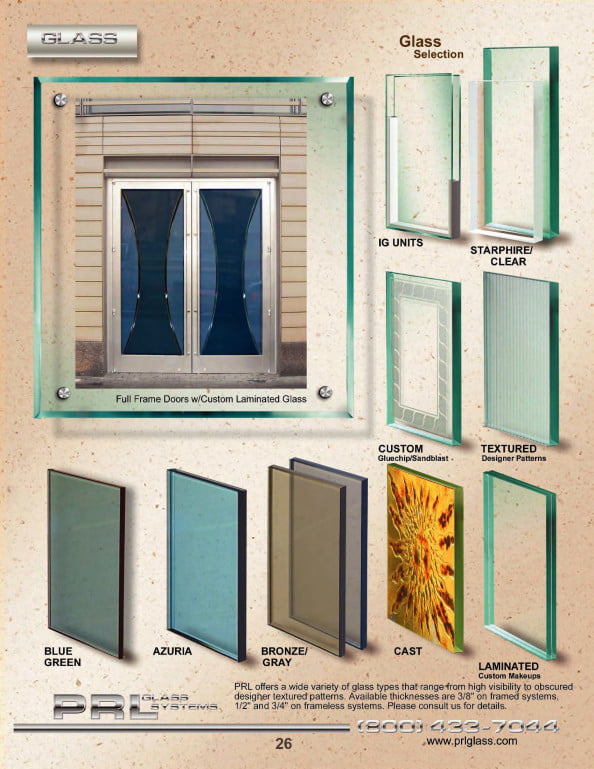

PRL Panic Catalog – Page 28

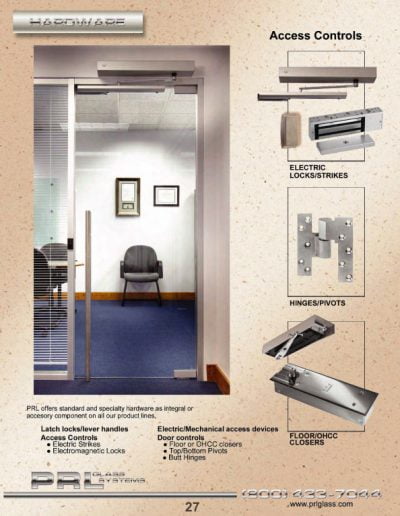

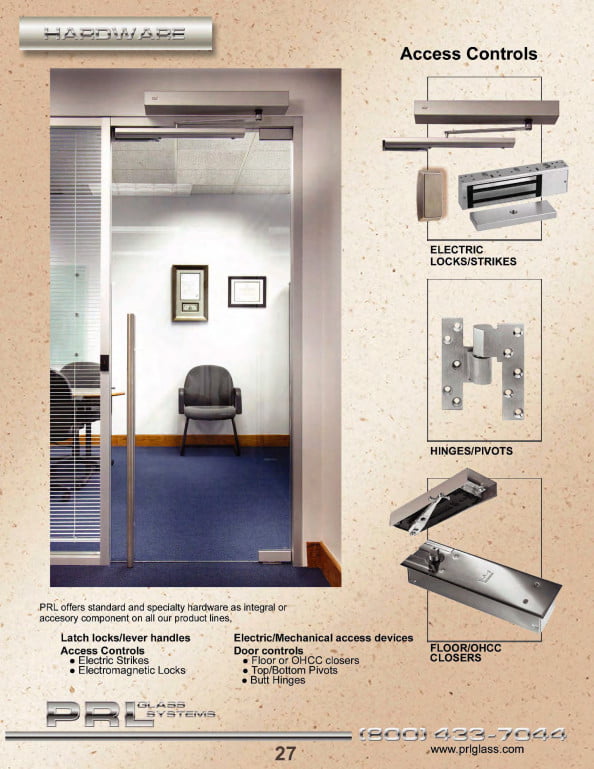

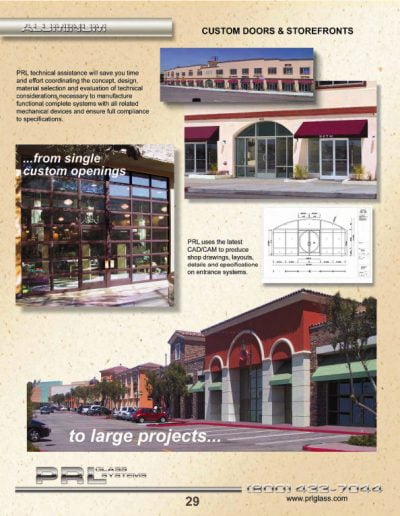

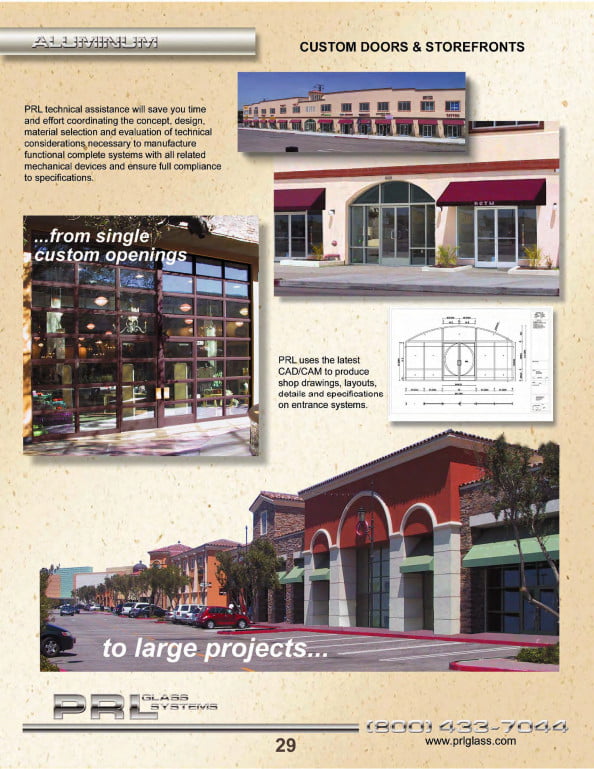

PRL Panic Catalog – Page 29

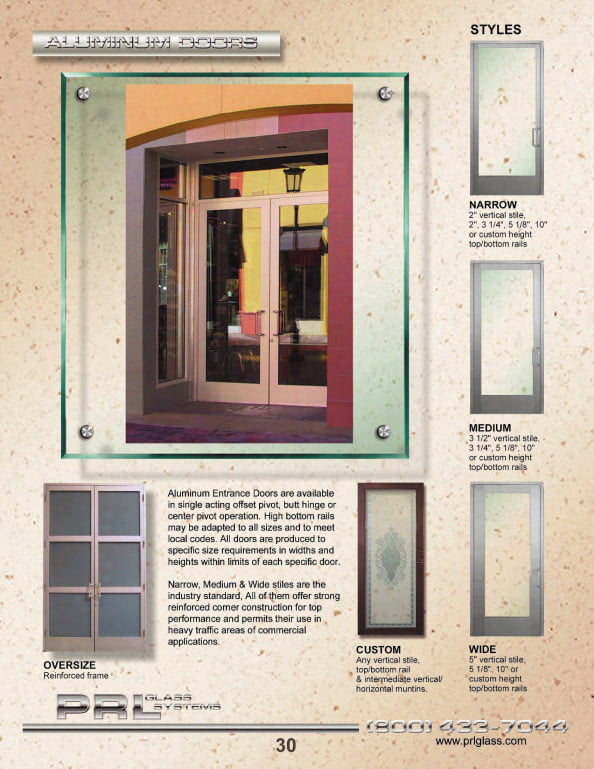

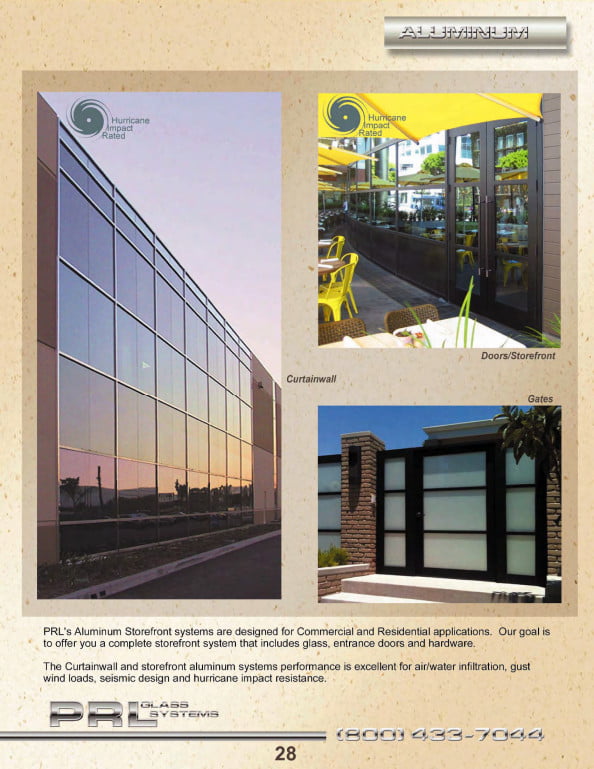

PRL Panic Catalog – Page 30

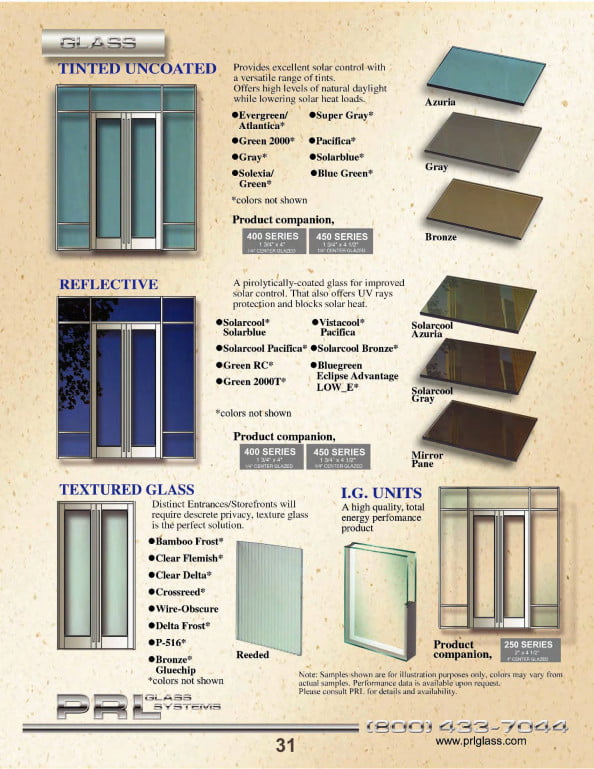

PRL Panic Catalog – Page 31
PRL Panic Catalog – Page 32
PRL Panic Catalog – Inside Back Cover
PRL Panic Catalog – Back Cover
UL Certified & Tested in Accordance With ANSI & BHMA
Tested up to 2 million cycles
Unlimited Glass Type Options. You Name It. We Fabricate It.
NEW Full Frame and All Glass Door Panic Device Video

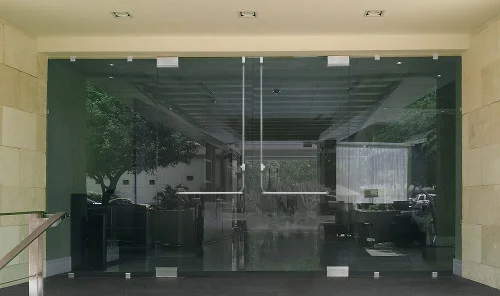

At PRL, we offer complete all-glass and full framed door systems including panic door devices.
PRL Panics are offered in PL-100 top latching and PL-110 bottom latching series, feature narrow 1 ¼” dia. tubular L-shaped interior push bars with multiple exterior pull options.
Panic devices are manufactured in-house from stainless steel, we furnish three styles; classic, innovative and unique Read More...
What Our Customers Say
Thanks to PRL my business now runs smoothly with minimum back orders or mistakes”.

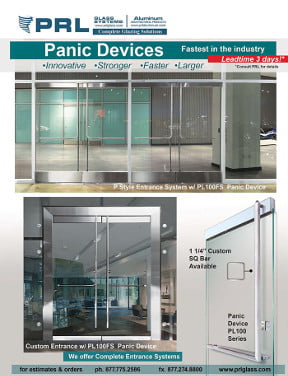

Fire Exit Doors
Beautiful, expansive views, oversized all glass fire exit doors and 3 panic device styles! Available in a large selection of panic device finishes and glass types.
